Engineering Takeaway
In ultrasonic thermoplastic joining, over 80% of premature weld failures and cosmetic flash defects originate from inappropriate joint geometry rather than machine generator settings. Selecting between a classic triangular energy director and an interference shear joint depends strictly on your polymer's crystalline morphology (amorphous vs. semi-crystalline) and required hermetic pressure rating.
1. Why Joint Design Governs Ultrasonic Success

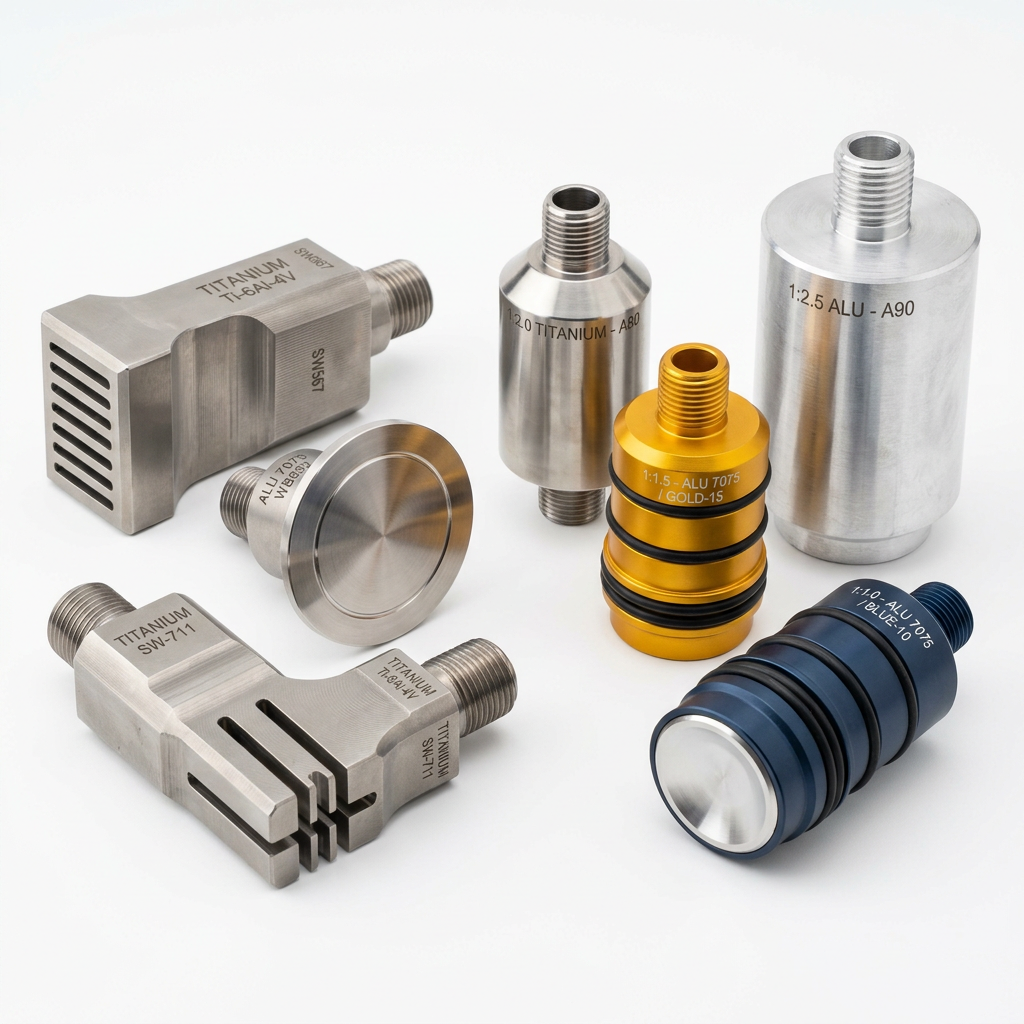

Ultrasonic welding operates by converting 15 kHz, 20 kHz, or 35 kHz high-frequency electrical signals into longitudinal mechanical vibrations (amplitudes typically between 15 µm and 45 µm). If two flat plastic surfaces are placed together under pressure, acoustic energy dissipates across the broad contact area, resulting in erratic surface scuffing, long weld times, and internal stress cracking.
A properly engineered joint creates an intentional stress concentration point. By minimizing initial contact area, mechanical vibration rapidly converts into cyclical viscoelastic strain hysteretic heating, melting the polymer interface within 0.2 to 0.8 seconds before bulk material degradation occurs.
2. The Triangular Energy Director (Standard & Modified)
The energy director is a raised triangular ridge molded directly onto one of the mating part surfaces. As the sonotrode delivers high-frequency vibration under pneumatic or servo downward force, the peak of the triangle initiates molten plastic flow, which spreads uniformly across the joint interface.
Engineering Sizing Rules:
- Apex Angle: 90° for amorphous resins (ABS, PC, PMMA, PS); 60° for semi-crystalline polymers or high-speed thin-wall applications.
- Ridge Height: Typically sized to 0.5 to 0.6 times the part wall thickness, usually between 0.35 mm and 0.8 mm.
- Base Width: Equal to twice the height for 90° angles.
- Flash Containment: Always incorporate a step joint or flash trap to capture excess molten resin, preventing visible flash lines on exterior aesthetic surfaces.
3. Shear Joints: Essential for Semi-Crystalline Resins
Semi-crystalline polymers such as Polypropylene (PP), Polyamide (Nylon / PA66), and POM (Acetal) exhibit sharp melting points rather than gradual glass-transition softening. Energy director molten resin often solidifies prematurely before wetting out the entire joint, resulting in cold joints and localized air voids.
For these challenging materials, an Interference Shear Joint is mandatory:
- The parts telescope together with an intentional horizontal interference fit (typically 0.2 mm to 0.5 mm).
- Melting occurs continuously along vertical shearing sidewalls as the parts collapse axially under pressure.
- Molten resin remains trapped in the shearing zone without atmospheric cooling, achieving reliable hermetic seals (up to 0.8–1.0 MPa pressure decay validation).
4. Engineering Selection Matrix
| Design Feature | Triangular Energy Director | Interference Shear Joint | Tongue & Groove Joint |
|---|---|---|---|
| Primary Resin Fit | Amorphous (ABS, PC, PS, SAN) | Semi-Crystalline (PA66, PP, POM) | Amorphous & Blends (PC/ABS) |
| Hermetic Pressure Seal | Moderate (Low pressure) | Superior (IP67 / IP68 leak-proof) | High (When flash-trapped) |
| Weld Cycle Time | Fast (0.15 – 0.5 sec) | Medium (0.4 – 1.2 sec) | Fast (0.2 – 0.6 sec) |
| Molding Tooling Precision | Standard tolerance (±0.05 mm) | High precision required (±0.02 mm) | Moderate (±0.03 mm) |
5. Acoustic Troubleshooting Checklist
Symptom: Excessive Flash & Part Distortion
Root Cause: Over-welding energy or undersized flash pocket. Reduce weld time or amplitude; incorporate a 0.25 mm step joint lip to conceal flash internally.
Symptom: Incomplete Fusion Around Perimeter
Root Cause: Sonotrode amplitude un-evenness or part warp. Conduct ANSYS FEA horn nodal tuning and verify lower fixture vacuum support rigidity.
Symptom: Internal Component Damage
Root Cause: Far-field vibration transmission damaging sensitive electronics. Switch from 15 kHz to 35 kHz high-frequency welding or reduce booster gain.
