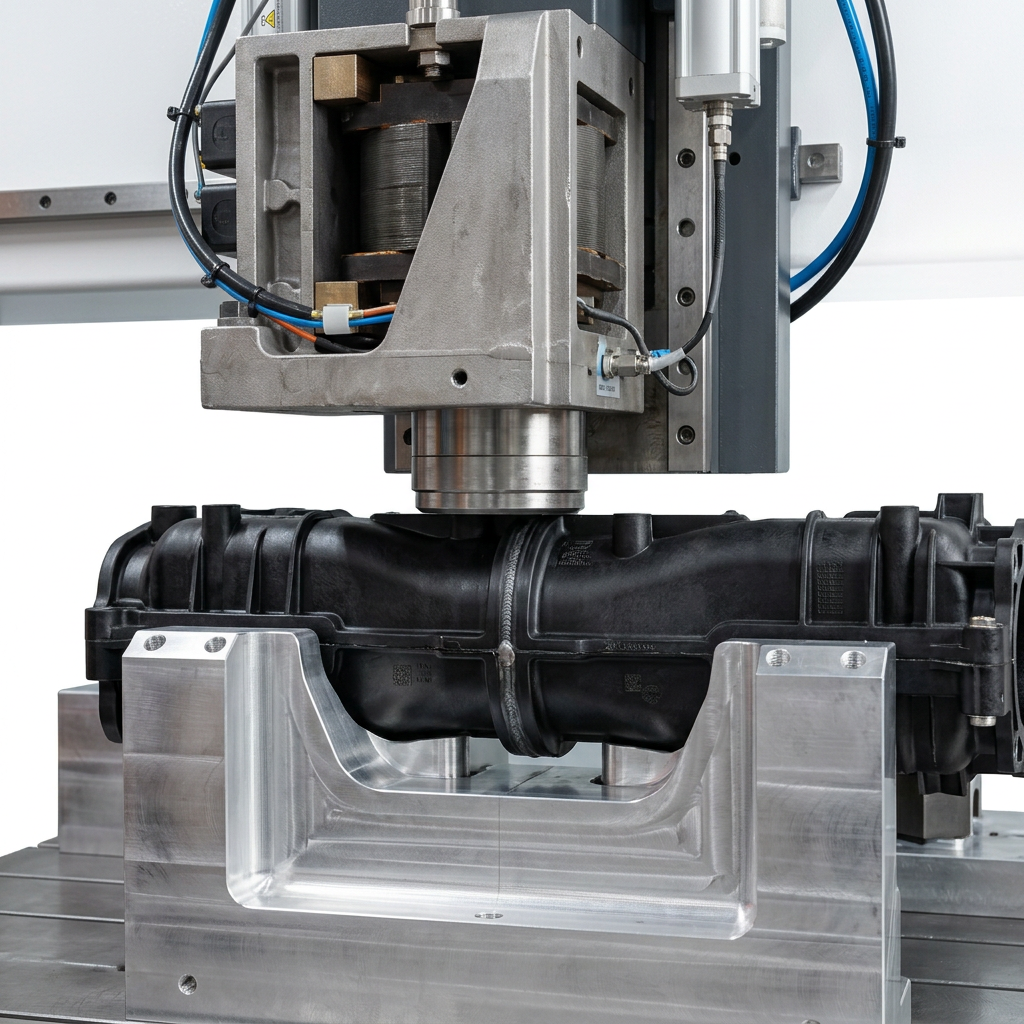

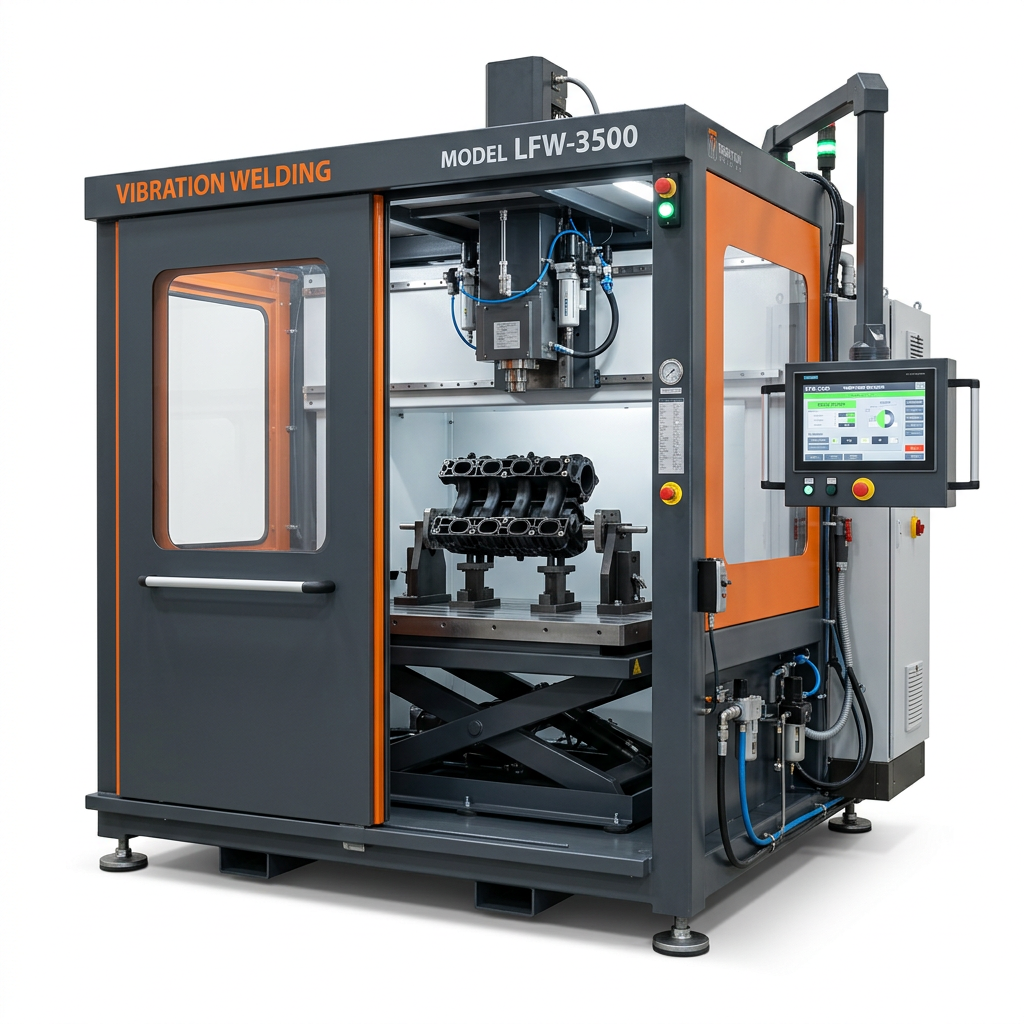

Heavy-Duty Linear Vibration Friction Welding Machine (UL-VW1000)
The UltraLanank UL-VW1000 Heavy-Duty Linear Vibration Friction Welding Machine is engineered for high-strength, hermetically sealed assembly of large and irregular-shaped thermoplastic components. Utilizing electromagnetic resonant drive technology, it produces linear reciprocating friction to melt mating surfaces rapidly under controlled hydraulic/servo clamping pressure.
Key Operational Advantages
- High Strength Hermetic Seals: Capable of joining complex parting lines, internal baffles, and curved 3D geometries that ultrasonic welding cannot reach.
- Broad Material Compatibility: Excels at welding crystalline and semi-crystalline polymers including glass-filled Nylon (PA6/PA66-GF), Polypropylene (PP), PE, POM, and dissimilar thermoplastic combinations.
- Electromagnetic Resonant Head: Delivers consistent 200 Hz – 240 Hz linear vibration with minimal mechanical wear, eliminating hydraulic vibration maintenance.
- Precision Laser Depth & Melt Monitoring: Multi-stage welding modes (time, absolute distance, collapse distance) with real-time displacement curves.
Technical Specifications
| Parameter | Specification |
|---|---|
| Vibration Frequency | 100 Hz – 240 Hz (Standard 200–240 Hz) |
| Vibration Amplitude (Peak-to-Peak) | 0.5 mm – 1.8 mm (Continuously Adjustable) |
| Upper Tooling Weight Capacity | 25 kg – 60 kg |
| Lifting Table Clamping Force | Up to 25 kN (Hydraulic / Servo Driven) |
| Working Table Size | 1000 mm x 500 mm (Custom platen up to 1500 mm) |
| Acoustic Enclosure | Heavy-duty soundproof enclosure (<75 dB operating noise) |
| Control System | Industrial PLC with 12" Full-Color Touchscreen HMI |
| Machine Footprint & Weight | Approx. 2200 x 1400 x 2300 mm / 3800 kg |
Typical Industrial & Automotive Applications
Automotive air intake manifolds, coolant expansion tanks, front/rear automotive light clusters, dashboard gloveboxes, HVAC air ducts, washing machine balance rings, and industrial fluid reservoirs.
Sample Trial & Mold Tooling Design Consultation
We provide full turnkey tooling fixtures and trial weld evaluations. Contact our technical team with 3D CAD files (.STEP/.IGES) for joint design optimization and burst pressure testing analysis.
Engineering Feasibility & Free Lab Testing
Need custom horn tooling or joint validation? Send your 2D/3D CAD models (.STEP, .DWG) or molded parts to our Dongguan R&D lab for free test welding and weld strength reports.
- 12-Month Global Warranty: Full machine parts replacement & lifetime engineering support.
- Custom CNC Tooling: In-house CNC titanium (TC4) & aerospace aluminum horns machined to 3D CAD.
- Free Sample Welding Trial: Feasibility report, tensile pull data, and 4K welding video within 48h.
- CE & ISO 9001 Certified: 100% pre-shipment load aging & export wooden-crate packaging.
